Examples

PRoTECT includes benchmark examples for all four system types. Pre-configured GUI files are available in ex/GUI_config_files/ and can be imported via the Import Config button in the GUI.

All example scripts are in the ex/ directory.

Jet Engine — ct-DS

A 2D continuous-time deterministic jet engine system verified over an infinite time horizon. The goal is to prove the system never reaches the red unsafe region.

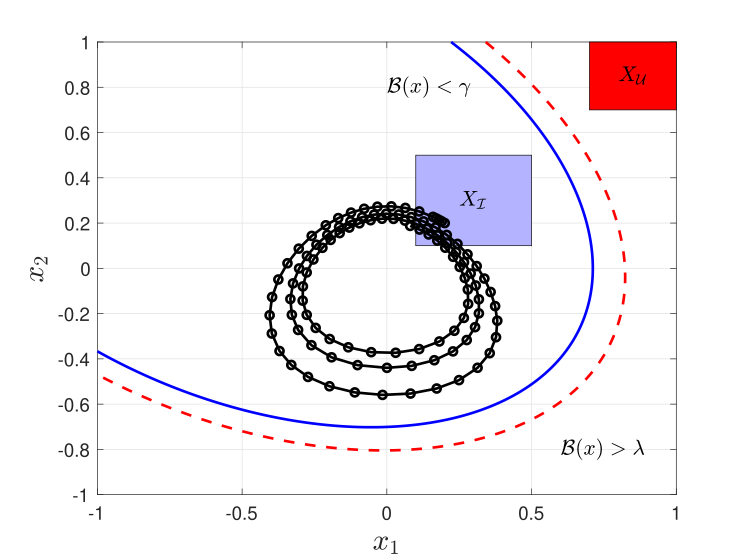

2D Jet Engine (ct-DS)

Source: ex2_jet_engine_ct_DS.py

Van der Pol Oscillator — dt-SS

A 2D discrete-time stochastic Van der Pol oscillator verified over a finite time horizon with uniform noise. The goal is to bound the probability of reaching the red unsafe region.

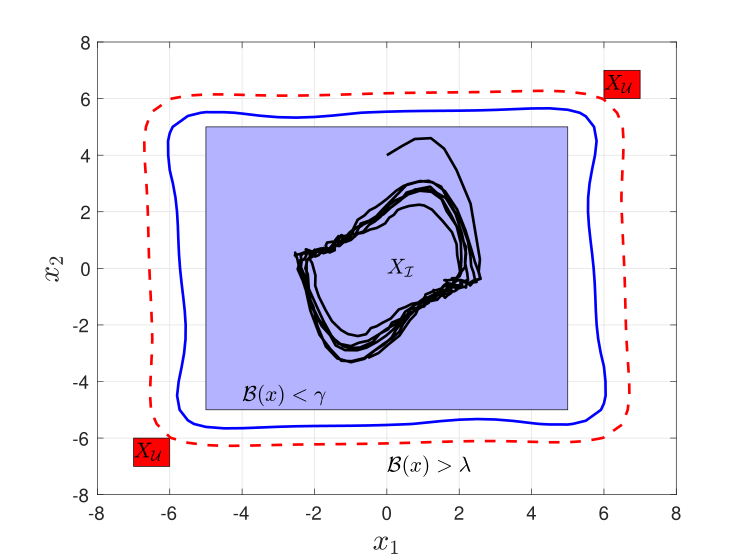

2D Van der Pol Oscillator (dt-SS)

Source: ex2_van_der_pol_oscillator_dt_SS_uniform.py

Two-Room Temperature — dt-DS

A 2D discrete-time deterministic two-room temperature system verified over an infinite time horizon.

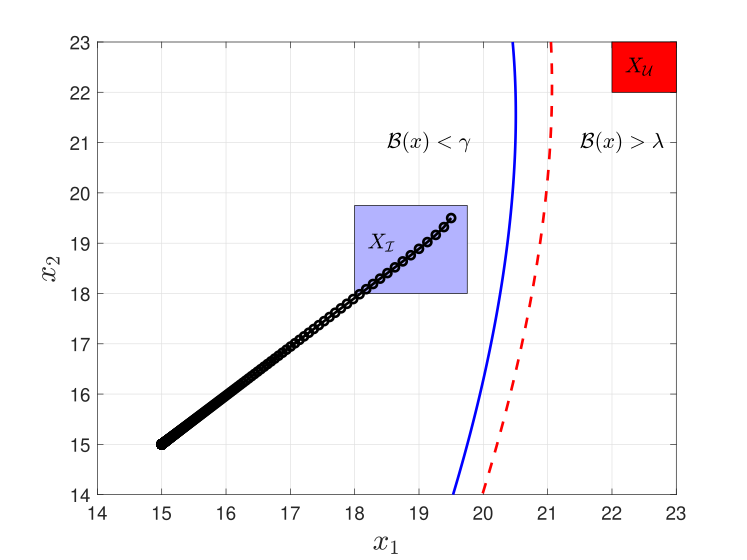

2D Two-Room Temperature (dt-DS)

Source: ex2_TwoRoomTemp_dt_DS.py

Linear and Nonlinear 2D Systems — ct-SS

Two continuous-time stochastic systems (linear and nonlinear) verified over a finite time horizon.

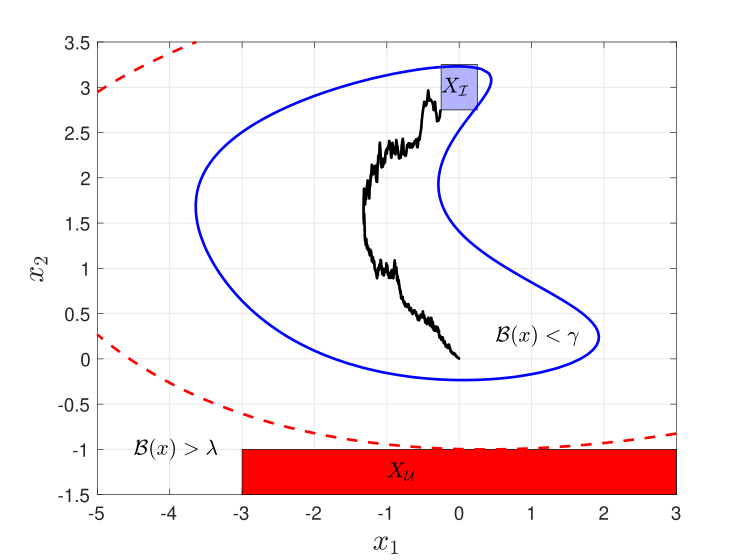

2D Linear System (ct-SS)

Linear system — ex2_A1linear_ct_SS.py

2D Nonlinear System (ct-SS)

Nonlinear system — ex2_nonlinear_ct_SS.py

DC Motor — dt-DS

A 2D discrete-time deterministic DC motor system.

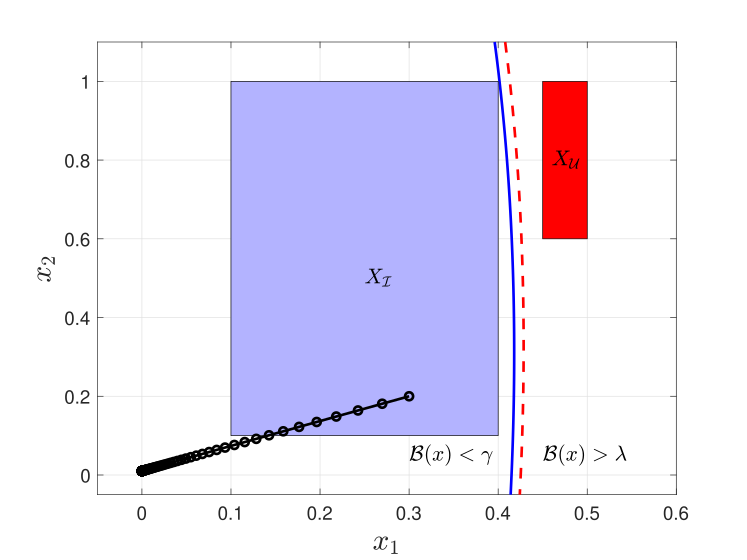

2D DC Motor (dt-DS)

Source: ex2_DC_Motor_dt_DS.py

Two-Tank System — dt-SS

A 2D discrete-time stochastic two-tank system.

2D Two-Tank System (dt-SS)

Source: ex2_two_tanks_dt_SS.py

More Examples

Additional benchmarks, including high-order systems (4D, 6D, 8D), are available in the repository:

  • Deterministic: ex/benchmarks-deterministic/PRoTECT-versions/

  • Stochastic (single runs): ex/benchmarks-stochastic/Table 2 - Single Runs/

  • Stochastic (parallel runs): ex/benchmarks-stochastic/Table 3 - Parallel Runs/

  • ARCH-COMP competition: ex/ARCH-COMP/
